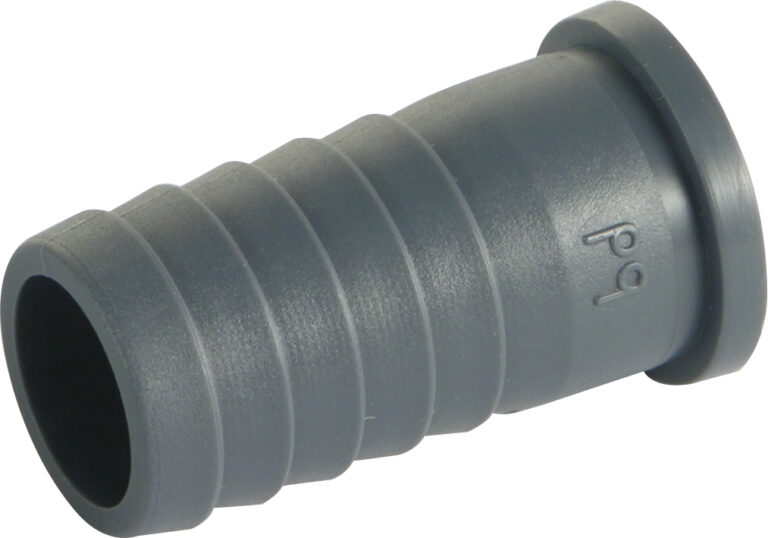

Bucchi slangtule met vlakke afdichting type 0800123
RECHTE SLANGSLEEVE voor DN-slangdraaduiteinde voor beweegbare ringmoer G
TECHNISCHE SPECIFICATIES
Connectiviteitsnorm: Aansluitingen voor mobiele ringschroefdraad cilindrisch ISO 228/1
Slangaansluiting DN
Materiaal: polypropyleen (PP)
Kleur: donkergrijs (RAL 7015)
| Code | G | DN mm (Zoll) | D | H | L(a) | E |
|---|---|---|---|---|---|---|
| 0800123.060107 | 1/4" | 7 (5/18") | 4 | 28 | 17 | 11,5 |
| 0800123.060209 | 3/8" | 9 (11/32") | 5 | 36 | 22 | 15 |
| 0800123.060210 | 3/8" | 10 (3/8") | 6 | 33 | 22 | 15 |
| 0800123.060212 | 3/8" | 12 (15/32") | 7,5 | 36 | 27 | 15 |
| 0800123.060310 | 1/2" | 10 (3/8") | 6 | 33,5 | 18 | 22,5 |
| 0800123.060313 | 1/2" | 13 (1/2") | 8,5 | 38 | 25 | 18,5 |
| 0800123.060316 | 1/2" | 16 (5/8") | 10 | 46,5 | 30,5 | 18,5 |
| 0800123.060510 | 3/4" | 10 (3/8") | 6 | 33,5 | 22 | 24 |
| 0800123.060512 | 3/4" | 12 (15/32") | 7,5 | 40,5 | 27 | 24 |
| 0800123.060513 | 3/4" | 13 (1/2") | 8,5 | 35 | 25 | 24 |
| 0800123.060516 | 3/4" | 16 (5/8") | 10 | 44 | 30,5 | 24 |
| 0800123.060519 | 3/4" | 19 (3/4") | 14,5 | 50 | 33 | 24 |
| 0800123.060520 | 3/4" | 20 (25/32") | 14 | 43,5 | 30,5 | 24 |
| 0800123.060720 | 1" | 20 (25/32") | 14 | 43,5 | 30,5 | 30 |
| 0800123.060720 | 1" | 20 (25/32") | 14 | 43,5 | 30,5 | 30 |
| 0800123.060725 | 1" | 25 (1") | 19 | 49 | 36 | 30 |
| 0800123.060920 | 1"1/4 | 20 (25/32") | 13,5 | 46 | 30,5 | 38,5 |
| 0800123.060925 | 1"1/4 | 25 (1") | 19 | 49 | 36 | 38,5 |
| 0800123.060930 | 1"1/4 | 30 (1"3/16) | 23 | 49,5 | 36 | 38,5 |
| 0800123.060932 | 1"1/4 | 32 (1"1/4) | 24 | 49,5 | 36 | 38,5 |
| 0800123.061138 | 1"1/2 | 38 (1"1/2) | 32 | 66 | 43,5 | 44,5 |
| 0800123.061140 | 1"1/2 | 40 (1"9/16) | 33 | 67 | 43,5 | 44,5 |
| 0800123.061550 | 2" | 50 (2") | 42 | 70 | 44 | 56,5 |
