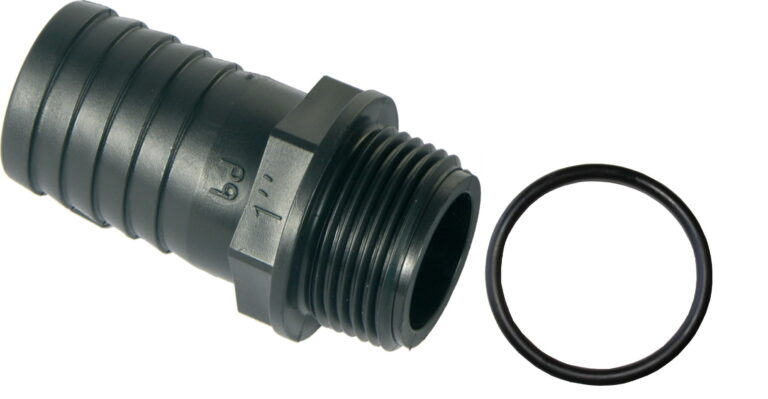

Bucchi slangtule met buitendraad en O-ring type 0400138

Bucchi slangtule met buitendraad en O-ring type 0400138

RECHTE SLANGSTUK (0400130) met NBR O-ring

TECHNISCHE SPECIFICATIES
Connectiviteitsnorm: buitendraad cilindrisch ISO 228/1
Slangaansluiting DN
Materiaal: polypropyleen (PP)
NBR
Werkdruk: 6 bar bij 20°C
Maximale werktemperatuur: 80 ° C

CodeD1DN mm (Zoll)
0400138.0503131/2" 13 (1/2")
0400138.0503161/2"16 (5/8")
0400138.0503201/2"20 (25/32")
0400138.0503251/2"25 (1")
0400138.0505123/4" 12 (15/32")
0400138.0505133/4" 13 (1/2")
0400138.0505163/4"16 (5/8")
0400138.0505193/4"19 (3/4")
0400138.0505203/4"20 (25/32")
0400138.0505253/4"25 (1")
0400138.0507191"19 (3/4")
0400138.0507201"20 (25/32")
0400138.0507251"25 (1")
0400138.0507301"30 (1"3/16)
0400138.0507321"32 (1"1/4)
0400138.0509201"1/420 (25/32")
0400138.0509251"1/425 (1")
0400138.0509301"1/430 (1"3/16)
0400138.0509321"1/432 (1"1/4)
0400138.0509351"1/435 (1"3/8)
0400138.0509381"1/438 (1"1/2)
0400138.0509401"1/440 (1"9/16)
0400138.0511251"1/225(1")
0400138.0511351"1/235 (1"3/8)
0400138.0511381"1/238 (1"1/2)
0400138.0511401"1/240 (1"9/16)
0400138.0511451"1/2 45 (1"25/32)
0400138.0511501"1/250 (2")
0400138.0515502"50 (2")
0400138.0515602"60 (2"3/8)
05222 / 20622
