Bucchi QJ snelkoppelingen MF gereduceerd voor tanks in PP type 0402820

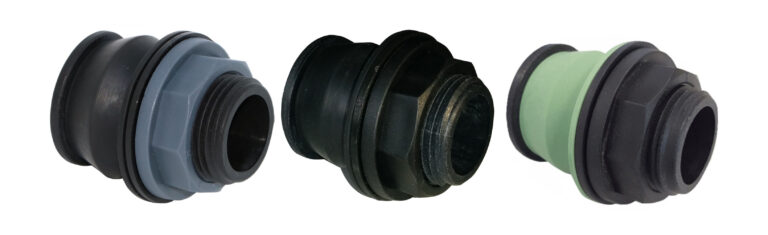

QJ® – SNEL-PUSH-IN-FITTING MF VERMINDERD voor TANK in PP buitendraad G1 voorzien van food-grade EPDM AFDICHTING, stijve platte ring van PP, klemkraag (zwart) – gereduceerde binnendraad G
SCHNELLSTUTZEN MF REDUZIERT für TANK in PP Außengewinde G1 bestückt mit lebensmittelechtem EPDM, NBR oder FKM DICHTUNG – starrer Flachring aus PP, Klemmkragen (schwarz) – reduziertes Innengewinde G
SCHNELL-Push-IN-FITTING MF REDUZIERT für TANK in PP JOINT und FPM
TECHNISCHE SPECIFICATIES
Connectiviteitsnorm: buitendraad cilindrisch ISO 228/1
Binnendraad cilindrisch ISO 228/1.
Materiaal: polypropyleen (PP)
EPDM
Kleur: Zwart (RAL 9011)
Werkdruk: 4 bar bij 20°C
Maximale werktemperatuur: 80 ° C
| Code | G1 | G | E | E1 | H | L2 | K |
|---|---|---|---|---|---|---|---|
| 0402820.050302/E | 1/2" | 3/8" | 29 | 38 | 49 | 5 | 28 |
| 0402820.050503/E | 3/4" | 1/2" | 35 | 43 | 52 | 4 | 32 |
| 0402820.050705/E | 1" | 3/4" | 43 | 53 | 56 | 7 | 41 |
| 0402820.050907/E | 1"1/4 | 1" | 52 | 62 | 65 | 6 | 50 |
| 0402820.051109/E | 1"1/2 | 1"1/4 | 59 | 68 | 75 | 16 | 57 |
| 0402820.051511/E | 2" | 1"1/2 | 70 | 80 | 91 | 31 | 70 |
| Code | G1 | G | E | E1 | H | L2 | K |
| 0402820.050302/N | 1/2" | 3/8" | 29 | 37 | 49 | 5 | 28 |
| 0402820.050503/N | 3/4" | 1/2" | 35 | 43 | 52 | 4 | 32 |
| 0402820.050705/N | 1" | 3/4" | 43 | 53 | 56 | 7 | 41 |
| 0402820.050907/N | 1"1/4 | 1" | 52 | 62 | 65 | 6 | 50 |
| 0402820.051109/N | 1"1/2 | 1"1/4 | 59 | 68 | 75 | 16 | 57 |
| 0402820.051511/N | 2" | 1"1/2 | 70 | 80 | 91 | 31 | 70 |
| Code | E | E1 | G | G1 | H | K | L2 |
| 0402820.050302/F | 29 | 37 | 3/8" | 1/2" | 49 | 28 | 5 |
| 0402820.050503/F | 35 | 43 | 1/2" | 3/4" | 52 | 32 | 4 |
| 0402820.050705/F | 43 | 53 | 3/4" | 1" | 56 | 41 | 7 |
| 0402820.050907/F | 52 | 62 | 1" | 1"1/4 | 65 | 50 | 6 |
| 0402820.051109/F | 59 | 68 | 1"1/4 | 1"1/2 | 75 | 57 | 16 |
| 0402820.051511/F | 70 | 80 | 1"1/2 | 2" | 91 | 70 | 31 |
