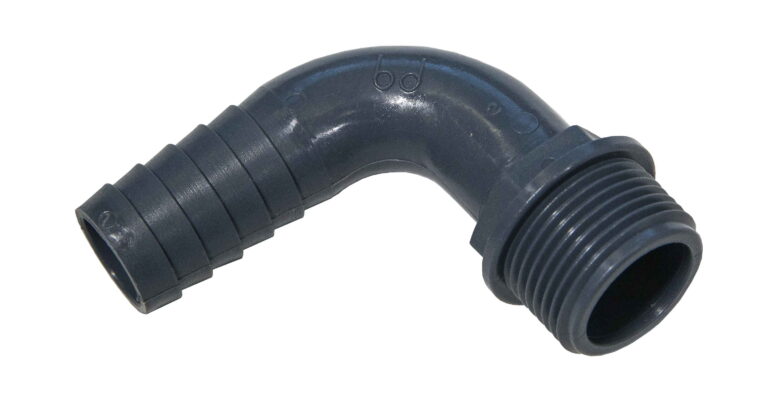

Bucchi haakse slangtule 90° met buitendraad, type 0800131
GEHOEKTE SLANGSLANG 90 ° voor DN-slang met buitendraad
TECHNISCHE SPECIFICATIES
Connectiviteitsnorm: buitendraad cilindrisch ISO 228/1
Slangaansluiting DN
Materiaal: polypropyleen (PP)
Kleur: donkergrijs (RAL 7015)
Werkdruk: 6 bar bij 20°C
Maximale werktemperatuur: 80 ° C
| Code | G1 | DN mm (Zoll) | D | D1 | H | H1 | L(a) | E | L |
|---|---|---|---|---|---|---|---|---|---|
| 0800131.060110 | 1/4" | 10 (3/8") | 7 | 7 | 44 | 55 | 30 | 19,5 | 12 |
| 0800131.060938 | 1/4" | 12 (15/32") | 7 | 7 | 42 | 54 | 30 | 19,5 | 11 |
| 0800131.060210 | 3/8" | 10 (3/8") | 7 | 7 | 43 | 54,5 | 30 | 21 | 12 |
| 0800131.060212 | 3/8" | 12 (15/32") | 7 | 10 | 43 | 55 | 30 | 21 | 12 |
| 0800131.060213 | 3/8" | 13 (1/2") | 7 | 10 | 43,5 | 55 | 25 | 21 | 12 |
| 0800131.060312 | 1/2" | 12 (15/32") | 7 | 14 | 44 | 57 | 30 | 25 | 13,5 |
| 0800131.060313 | 1/2" | 13 (1/2") | 7 | 14 | 44,5 | 57 | 30 | 25 | 13,5 |
| 0800131.060316 | 1/2" | 16 (5/8") | 11 | 14 | 47 | 57 | 30 | 25 | 13,5 |
| 0800131.060320 | 1/2" | 20 (25/32") | 15 | 15,5 | 61 | 70 | 33 | 25 | 13,5 |
| 0800131.060512 | 3/4" | 12 (15/32") | 7 | 19 | 45 | 60 | 30 | 31,5 | 14,5 |
| 0800131.060520 | 3/4" | 20 (25/32") | 15 | 19 | 64 | 72 | 33 | 30,5 | 14,5 |
| 0800131.060522 | 3/4" | 22 (7/8") | 17 | 20 | 62 | 78 | 30 | 30,5 | 14,5 |
| 0800131.060525 | 3/4" | 25 (1") | 19,5 | 19 | 64 | 78 | 30 | 30,5 | 14,5 |
| 0800131.060722 | 1" | 22 (7/8") | 17 | 21 | 65 | 80 | 30 | 39 | 14,5 |
| 0800131.060725 | 1" | 25 (1") | 19,5 | 21 | 66 | 81 | 30 | 39 | 14 |
| 0800131.060730 | 1" | 30 (1"3/16) | 24,5 | 24,5 | 68 | 87 | 28 | 39 | 14,5 |
| 0800131.060732 | 1" | 32 (1"1/4) | 24,5 | 24,5 | 69 | 87 | 32 | 39 | 14,5 |
| 0800131.060930 | 1"1/4 | 30 (1"3/16) | 25,5 | 32,5 | 73 | 91 | 28 | 47 | 15,5 |
| 0800131.060932 | 1"1/4 | 32 (1"1/4) | 24,5 | 32,5 | 74 | 91 | 32 | 47 | 15,5 |
| 0800131.061138 | 1"1/2 | 38 (1"1/2) | 33 | 38,5 | 85 | 102 | 35 | 53,5 | 15 |
| 0800131.061140 | 1"1/2 | 40 (1"9/16) | 33 | 38,5 | 85 | 102 | 35 | 53,5 | 15 |
