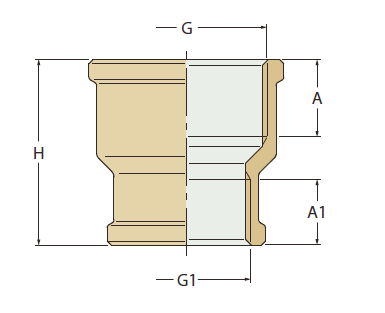

Reducing sleeve, internal thread x internal thread type 0240B
Material: bronze
Thread: EN 10226/1 (BS21)
| G | G1 | A1 | A | H | Weight (gr) |
|---|---|---|---|---|---|
| 1/2” | 3/8” | 15 | 11.4 | 30 | 55 |
| 3/4” | 1/2” | 16.3 | 15 | 36 | 85 |
| 1” | 3/4” | 19.1 | 16.3 | 41 | 135 |
| 1”1/4 | 1” | 21.4 | 19.1 | 47 | 215 |
| 1”1/2 | 1”1/4 | 21.4 | 21.4 | 49 | 280 |
| 2” | 1”1/2 | 25.7 | 21.4 | 55 | 450 |
