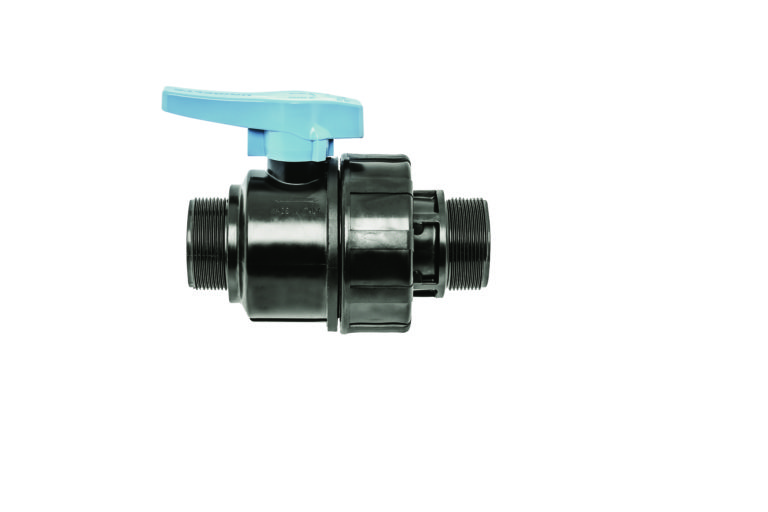

PP ball valve with 2 x external thread, type Unidelta 1074
Connection type: 2 x external thread
Pressure: 16 bar
The clamp connectors from Unidelta have been specially designed to connect
Polyethylene pipes with outside diameters between 16 mm and 110 mm
developed, and are with all according to the standards EN 12201, ISO 4427, ISO
14236, ISO13460, DIN 8074 pipes made of PELD, PEHD, PE40,
PE80, PE100 compatible.
They are usually used for carrying drinking water and liquids
with a pressure of up to 16 bar and for general applications
used.
Thanks to the properties of their materials, the fittings are resistant to attack
numerous chemical substances and resistant to UV rays.
The Unidelta PP clamp connectors are DVGW-tested.
At a water temperature of + 20 ° C, the clamp connectors
up to 16 bar can be used.
- Materials: Body / Sleeve / Union Nut: Polypropylene (PP-B) with high
- Degree of stability and UV protection.
- Seal: nitrile rubber (NBR)
- Sealing ring: acetal resin (POM)
| Art.Nr. | Code | Abmessung | Z | L | H | A | B | C | Verpackung |
|---|---|---|---|---|---|---|---|---|---|
| 00003988 | 1074002002001 | 1/2" x 1/2" | 55 | 89 | 17 | 50 | 51 | 68 | 40 Stück |
| 00003989 | 1074003003001 | 3/4"x 3/4" | 63 | 99 | 18 | 60 | 60 | 76 | 30 Stück |
| 00003990 | 1074004004001 | 1" x 1" | 68 | 110 | 21 | 68 | 67 | 89 | 60 Stück |
| 00003991 | 1074005005001 | 1 1/4" x 1 1/4" | 80 | 128 | 24 | 80 | 77 | 100 | 36 Stück |
| 00003992 | 1074006006001 | 1 1/2" x 1 1/2" | 94 | 142 | 24 | 95 | 88 | 116 | 18 Stück |
| 00003993 | 1074007007001 | 2" x 2" | 113 | 167 | 27 | 116 | 100 | 127 | 12 Stück |
