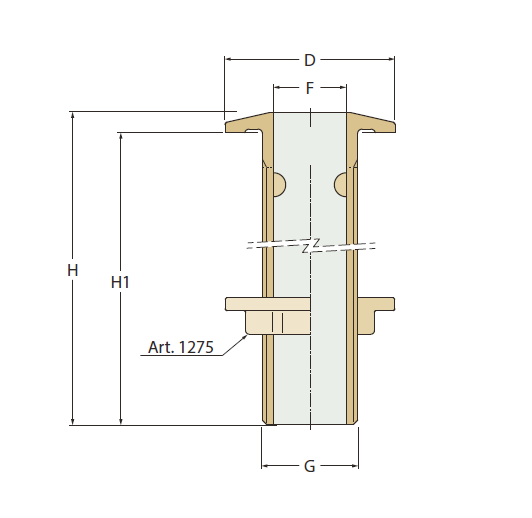

Panel feed-through with hexagonal lock nut type 1270
Material: bronze
Thread according to ISO 228/1 (BS 2779)
According to UNI EN ISO 9093-1 standard
| Ref. | F | H1 | D | H | Weight (gr) |
|---|---|---|---|---|---|
| 3/4” | 19 | 180 | 47 | 185 | 380 |
| 1” | 24 | 200 | 65 | 206 | 840 |
| 1”1/4 | 32 | 200 | 75 | 207 | 1190 |
| 1”1/2 | 37 | 200 | 85 | 207 | 1520 |
| 2” | 48 | 200 | 100 | 208 | 2200 |
| 2”1/2 | 63 | 230 | 120 | 238 | 3210 |
| 3” | 75 | 230 | 130 | 239 | 4100 |
