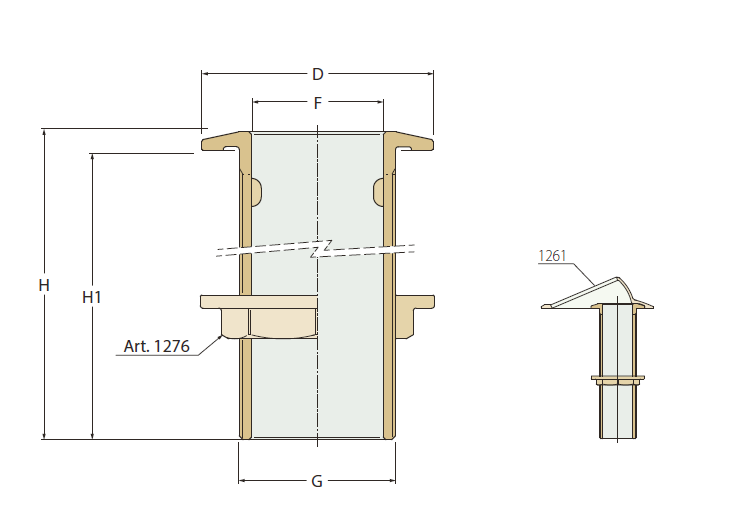

Panel feed-through with hexagonal lock nut type 1260A
Material: bronze
Thread according to ISO 228/1 (BS 2779)
| Container G | F | H1 | D | H | Weight (gr) |
|---|---|---|---|---|---|
| 1” | 25 | 200 | 57 | 206 | 780 |
| 1”1/4 | 32 | 200 | 67 | 207 | 1100 |
| 1”1/2 | 38 | 200 | 75 | 207 | 1360 |
| 2” | 50 | 200 | 88 | 208 | 1980 |
| 2”1/2 | 63 | 230 | 108 | 238 | 3020 |
| 3” | 76 | 230 | 122 | 239 | 3900 |
