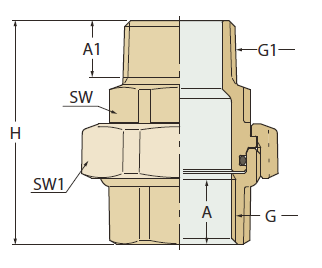

Fitting, female thread x male thread Type 0341
Material: brass, yellow
Alternatively, the article is available in nickel-plated brass.
| G - G1 | A | A1 | H | SW | SW1 | Weight (gr) |
|---|---|---|---|---|---|---|
| *1/8” | 9 | 9 | 42 | 14 | 24 | 65 |
| *1/4” | 11 | 11 | 48 | 18 | 30 | 115 |
| *3/8” | 12 | 13 | 53 | 22 | 35 | 150 |
| 1/2” | 15 | 13.2 | 57 | 25 | 39 | 230 |
| 3/4” | 16.3 | 14.5 | 63 | 31 | 45 | 315 |
| 1” | 19.1 | 16.8 | 53 | 38 | 53 | 405 |
| 1”1/4 | 21.4 | 19.1 | 73 | 47 | 63 | 650 |
| 1”1/2 | 21.4 | 19.1 | 74 | 54 | 70 | 775 |
| 2” | 25.7 | 23.4 | 87 | 67 | 84 | 1170 |
| 2”1/2 | 28 | 26.7 | 98 | 82 | 103 | 1770 |
| 3” | 30 | 29.8 | 106 | 95 | 118 | 2100 |
| 4” | 33 | 35.8 | 119 | 122 | 147 | 3000 |
