Double nipple reduced, external thread 0245

Material: brass, yellow

Alternatively, the article is available in nickel-plated brass and chrome-plated.

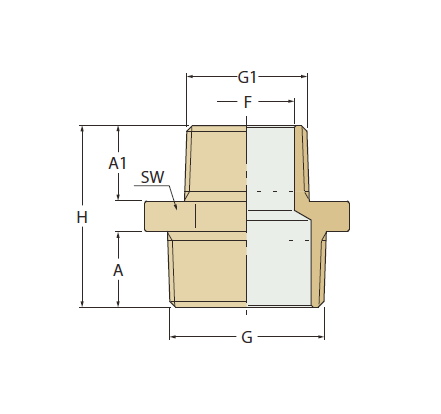

G	G1	A	A1	H	F	SW	Gewicht (gr)
1/4”	1/8”	11	7.5	23.5	6	16	15
3/8”	1/8”	11.5	7.5	25	6	19	25
3/8”	1/4”	11.5	11	28.5	9	19	25
1/2”	1/8”	15	7.5	28.5	6	22	35
1/2”	1/4”	15	11	32	9	22	40
1/2”	3/8”	15	11.5	32.5	12	22	40
3/4”	1/4”	16.5	11	34	9	28	55
3/4”	3/8”	16.5	16.5	34.5	12	28	60
3/4”	1/2”	16.5	15	38	15	28	65
1”	1/4”	19	11	37	9	35	90
1”	3/8”	19	11.5	37.5	12	35	90
1”	1/2”	19	15	41	15	35	100
1”	3/4”	19	19	42.5	20	35	105
1”1/4	1/2”	21.5	15	44.5	15	46	170
1”1/4	3/4”	21.5	16.5	46	20	46	175
1”1/4	1”	21.5	19	48.5	26	46	185
1”1/2	1/2”	21.5	16.5	45.5	15	52	215
1”1/2	3/4”	21.5	19	47	20	52	220
1”1/2	1”	21.5	15	49.5	26	52	230
1”1/2	1”1/4	21.5	16.5	52	34	52	240
2”	1”	25.5	19	54.5	26	65	370
2”	1”1/4	25.5	21.5	57	34	65	380
2”	1”1/2	25.5	21.5	57	40	65	385
2”1/2	2”	26	25.5	62.5	51	80	580
3”	2”	28.5	25.5	66	51	93	850
3”	2”1/2	28.5	26	66.5	65	93	860
4”	3”	34	28.5	75.5	76	122	1500
