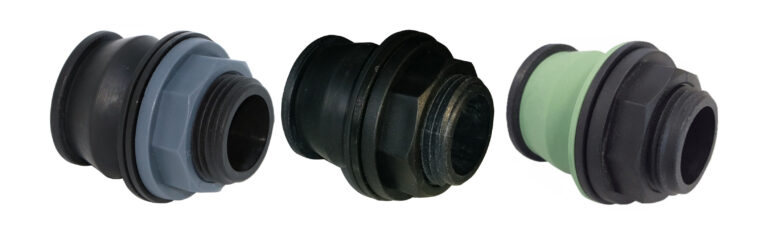

Bucchi QJ quick coupling fittings PP for tanks type 0402810
QUICK COUPLING for TANKS M male thread and G1 with food-safe EPDM SEAL, rigid flat PP-RING, clamping collar.
SCHNELLKUPPLUNG FITTING für TANKS M Außengewinde G1 mit NBR DICHTUNG, starrem flachem PP RING und Klemmkragen
QJ® – SCHNELLKUPPLUNG FITTING für TANKS M Außengewinde und G1 mit FPM, starrer flacher PP-RING, Klemmkragen.
TECHNICAL SPECIFICATIONS
Connectivity standard: male thread cylindrical ISO 228/1
Material: glass fiber reinforced polypropylene
EPDM
NBR
Fluoro Rubber (FPM)
Colour: Black (RAL 9011)
Working pressure: 4 bar at 20°C
Maximum working temperature: 80°C
| Code | G1 | E | E1 | D | H | L2 | K |
|---|---|---|---|---|---|---|---|
| 0402810.050303/E | 1/2" | 29 | 37 | 13 | 49 | 5 | 28 |
| 0402810.050505/E | 3/4" | 35 | 43 | 18 | 52 | 4 | 32 |
| 0402810.050707/E | 1" | 43 | 53 | 24 | 56 | 7 | 41 |
| 0402810.050909/E | 1"1/4 | 52 | 62 | 29,5 | 65 | 6 | 50 |
| 0402810.051111/E | 1"1/2 | 59 | 68 | 34,5 | 75 | 16 | 57 |
| 0402810.051515/E | 2" | 70 | 80 | 34,5 | 91 | 31 | 70 |
| Code | G1 | E | D | H | L2 | K | E1 |
| 0402810.050303/N | 1/2" | 29 | 13 | 49 | 5 | 28 | 37 |
| 0402810.050505/N | 3/4" | 35 | 18 | 54 | 4 | 32 | 43 |
| 0402810.050707/N | 1" | 43 | 24 | 56 | 7 | 41 | 53 |
| 0402810.050909/N | 1"1/4 | 52 | 29,5 | 65 | 6 | 50 | 62 |
| 0402810.051111/N | 1"1/2 | 59 | 34,5 | 75 | 16 | 57 | 68 |
| 0402810.051515/N | 2" | 70 | 34,5 | 91 | 31 | 70 | 80 |
| Code | G1 | E | E1 | D | H | L2 | K |
| 0402810.050303/F | 1/2" | 29 | 37 | 28 | 49 | 5 | 28 |
| 0402810.050505/F | 3/4" | 35 | 43 | 32 | 52 | 4 | 32 |
| 0402810.050707/F | 1" | 43 | 53 | 41 | 56 | 7 | 41 |
| 0402810.050909/F | 1"1/4 | 52 | 62 | 50 | 65 | 6 | 50 |
| 0402810.051111/F | 1"1/2 | 59 | 68 | 57 | 75 | 16 | 57 |
| 0402810.051515/F | 2" | 70 | 80 | 70 | 91 | 31 | 70 |
