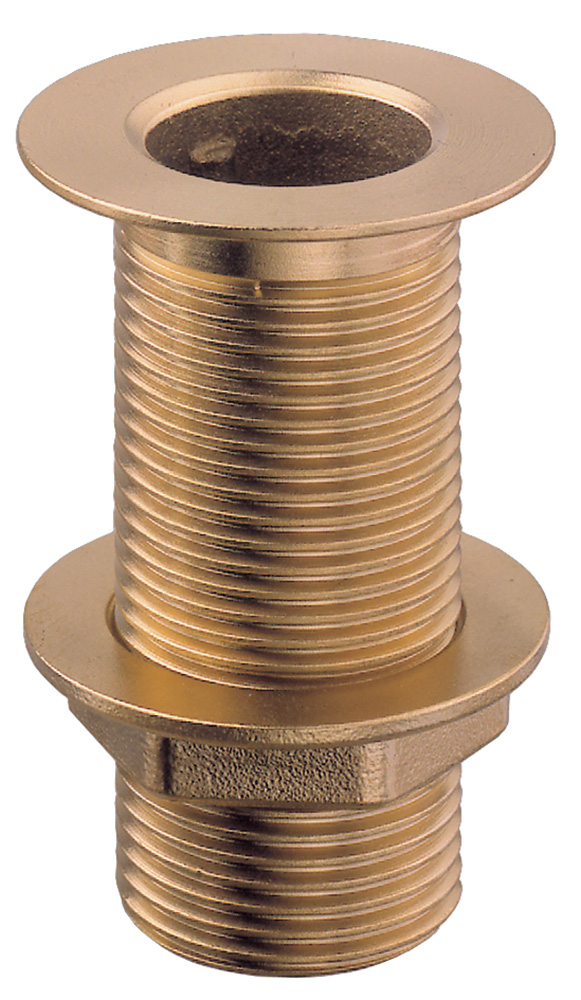

Board feed-through with threaded ring, Type Export Special Type 1265
Material: brass, light
The article is also available in chrome-plated bronze under the number 1265C.
Thread according to ISO 228/1 (BS 2779)
According to UNI EN ISO 9093-1

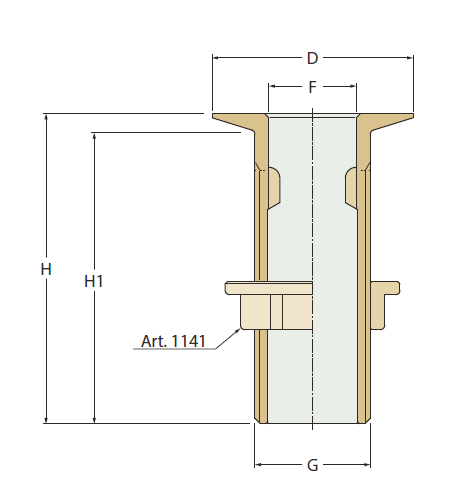

| thread G | F | H1 | D | H | weight (gr) |
|---|---|---|---|---|---|
| 3/8” | 12 | 50 | 30 | 54 | 55 |
| 1/2” | 15 | 61 | 35 | 65 | 100 |
| 3/4” | 20 | 67 | 50 | 71 | 160 |
| 1” | 25 | 72 | 59 | 76 | 235 |
| 1”1/4 | 33 | 70 | 60 | 75 | 345 |
| 1”1/2 | 39 | 71 | 66 | 76 | 455 675 |
| 2” | 50 | 75 | 82 | 80 | 675 |
