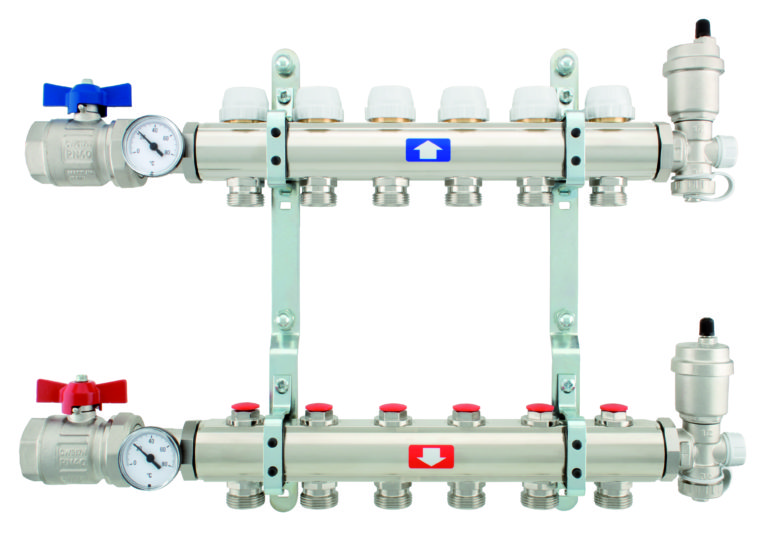

ART. 910C COMPLETELY PRE-ASSEMBLED DISTRIBUTOR WITH RETURN FITTINGS

ART. 910C COMPLETELY PRE-ASSEMBLED DISTRIBUTOR WITH RETURN FITTINGS

Consisting of:
– 1 return manifold made of brass with shut-off valves, which are predisposed for electrothermal control
– 1 flow distributor made of brass with lockshields
– 2 full metal brackets
– 2 shut-off ball valves
– 2 nozzles with thermometer
– 2 end units with vent valve and drain cock

Available sizes: 1 ”
Maximum operating pressure: 10 bar
Maximum operating temperature: 80 ° C
Thread connections: ISO 228 (corresponds to DIN EN ISO 228 and BS EN ISO 228).
From 3 to 13 branches with ¾ ”Eurocone connection.
Center distance of the branches: 50 mm.
Available with improved bracket Art. 498ST at no extra charge.
Available with 1/2 “” branches on request.
If electrothermal controls Art. 891M are used, the off-center bypass set Art. 860BY is recommended.
CAUTION: Pre-assembled heating circuit distributors are delivered pre-assembled on the bracket. However, accessories are packed loosely with the distributors.

AbmessungDruckCodeVerpackung
1 "x3 / 4" x310bar / 145psi9100010003034C1.1
1 "x3 / 4" x410bar / 145psi9100010004034C1.1
1 "x3 / 4" x510bar / 145psi9100010005034C1.1
1 "x3 / 4" x610bar / 145psi9100010006034C1.1
1 "x3 / 4" x710bar / 145psi9100010007034C1.1
1 "x3 / 4" x810bar / 145psi9100010008034C1.1
1 "x3 / 4" x910bar / 145psi9100010009034C1.1
1 "x3 / 4" x1010bar / 145psi9100010010034C1.1
1 "x3 / 4" x1110bar / 145psi9100010011034C1.1
1 "x3 / 4" x1210bar / 145psi9100010012034C1.1
1 "x3 / 4" x1310bar / 145psi9100010013034C1.1
05222 / 20622
