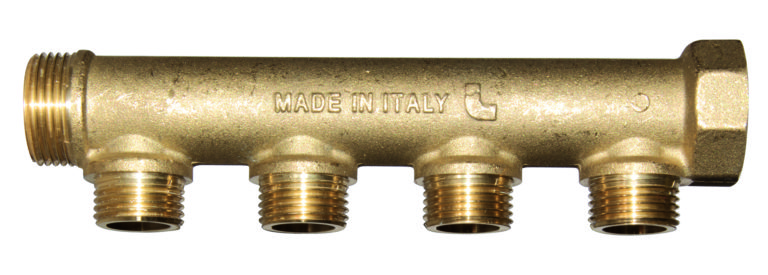

ART. 456 MODULE DISTRIBUTORS, BRANCHES WITH MALE THREAD WITH FLAT SEAT 1/2 ‘

Distributor with branches, external thread.
Suitable for connections for copper pipes, PEX, polybutylene and composite pipes.
Die-cast brass body.
Center distance 38 mm.
Maximum operating temperature: 110 ° C.
Threaded connections ISO228 (corresponds to DIN EN ISO 228 and BS EN ISO 228).
The 1/2 “male thread connection” G “is equipped with a flat seat and an inner diameter of 14.5 mm.
