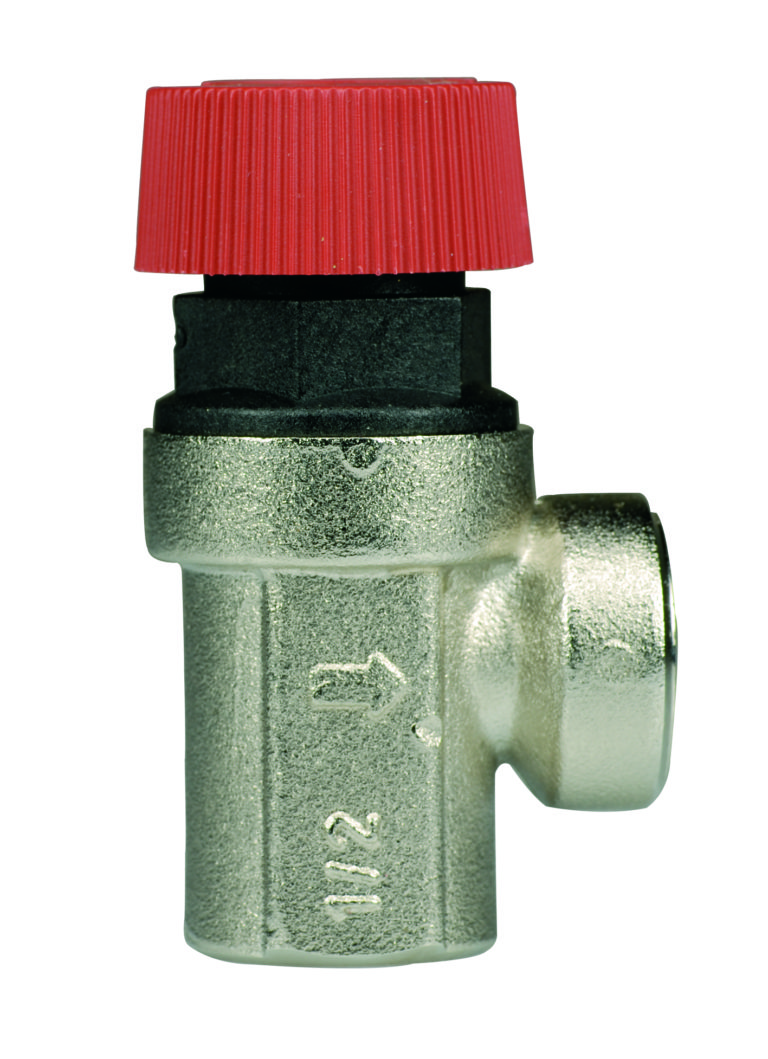

ART. 368 DIAPHRAGM SAFETY VALVE FEMALE THREAD

Nickel-plated brass body.
EPDM membrane.
Stainless steel spring.
Nominal pressure: 10 bar.
Operating temperature: 5 ° C – 110 ° C.
Overpressure opening: 20%.
Closure completion error: 20%.
Available calibrations: 1.5 – 1.8 – 2.5 – 3 – 4 – 6 bar.
Thread connections: ISO228 (corresponds to DIN EN ISO 228 and BS EN ISO 228).

Available sizes: 1/2 “x 1/2”, 3/4 “x 3/4”, 1 “x 1”

Abmessungen	Druck	Code	Verpackung
1/2 "(DN 15)	1.5	369001215M	10/150
1/2 "(DN 15)	1.8	369001218M	10/150
1/2 "(DN 15)	2.5	369001225M	10/150
1/2 "(DN 15)	3	369001230M	10/150
1/2 "(DN 15)	4	369001240M	10/150
1/2 "(DN 15)	6	369001260M	10/150
3/4 "(DN 20)	1.5	369001215M	10/150
3/4 "(DN 20)	1.8	369001218M	10/150
3/4 "(DN 20)	2.5	369001225M	10/150
3/4 "(DN 20)	3	369001230M	10/150
3/4 "(DN 20)	4	369001240M	10/150
3/4 "(DN 20)	6	369001260M	10/150
1 "(D25)	1.5	369001215M	10/80
1 "(D25)	1.8	369001218M	10/80
1 "(D25)	2.5	369001225M	10/80
1 "(D25)	3	369001230M	10/80
1 "(D25)	4	369001240M	10/80
1 "(D25)	6	369001260M	10/80

Dimensionspdf - 411208 kb Materialspdf - 389289 kb Declaration of conformitypdf - 573469 kb

Weitere Informationen finden Sie hier zum Herunterladen !
