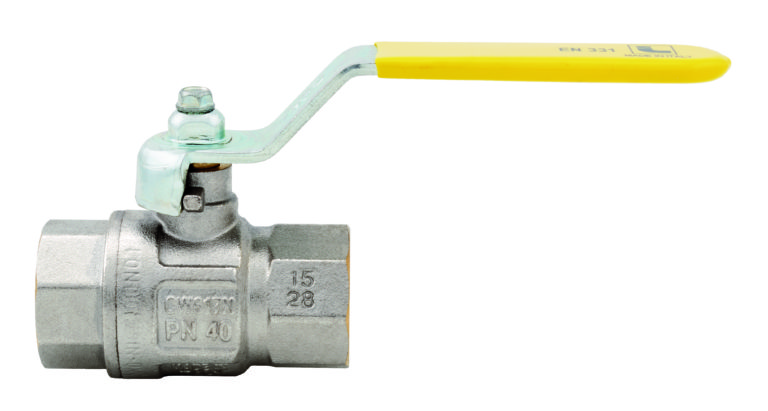

ART. 266 LONDON® BALL VALVE, FULL BORE

ART. 266 LONDON® BALL VALVE, FULL BORE

EN 331 CERTIFIED.
Threaded connections internal thread / internal thread.
Nickel-plated brass body.
Flat lever handle made of coated steel.
Minimum and maximum operating temperature: -20 ° C, 60 ° C.
Internal thread connection ISO 7/1 RP parallel (corresponds to DIN EN 10226-1 and BS EN 10226-1).

AbmessungPressioneArtikelnummerVerpackung
1/4”(DN8)5bar/72.5psi 266B01412/156
3/8”(DN10)5bar/72.5psi 266B03812/156
1/2”(DN15)5bar/72.5psi 266B01210/80
3/4”(DN20)5bar/72.5psi 266B0348/64
1” (DN 25)5bar/72.5psi 266B1006/48
1”1/4(DN32)5bar/72.5psi 266B1144/24
1”1/2 (DN 40)5bar/72.5psi 266B1122/18
2” (DN 50)5bar/72.5psi 266B2002/14
Dimensionspdf - 295325 kbMaterialspdf - 391010 kbInstallationpdf - 116740 kbPressure loss diagrampdf - 194708 kbDeclaration of conformitypdf - 575269 kb

Weitere Informationen finden Sie hier zum Herunterladen !
