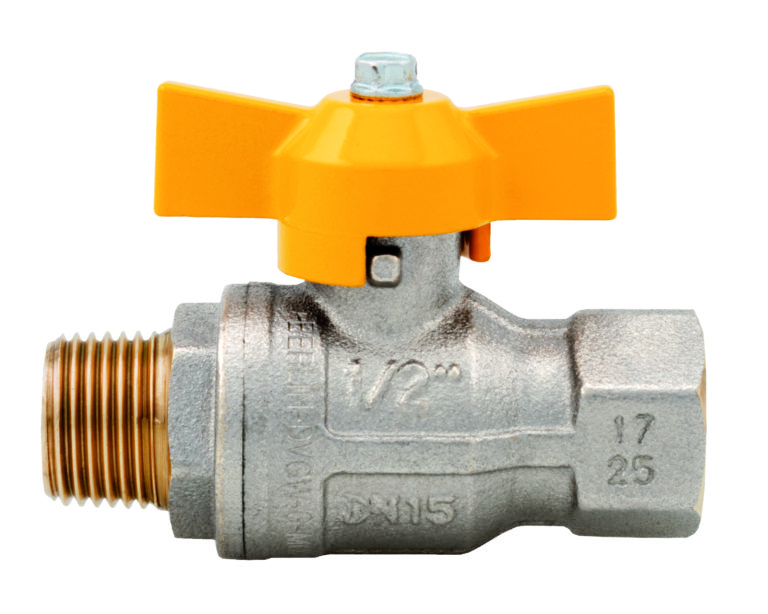

ART. 073 BALL VALVE BERLIN®, FULL FLOW
EN 331-CERTIFIED.
Threaded connections male thread/female thread.
Body in nickel-plated brass.
T-handle in aluminium.
Minimum and maximum operating temperature: -20°C, 60°C.
Internal thread connection ISO 7/1 RP parallel (complies with DIN EN 10226-1 and BS EN 10226-1).
External thread connection ISO 7/1 RP conical (corresponds to DIN EN 10226-1 and BS EN 10226-1).
|
Dimensionspdf - 288766 kbMaterialspdf - 402605 kbInstallationpdf - 115484 kbPressure loss diagrampdf - 191145 kbDichiarazione ENG Berlinpdf - 575275 kb
Further information can be downloaded here !
